D3D9::ShaderAssembly Class Reference

This is base class for hierarchy of shader compilers. More...

#include <dx9_wrap.h>

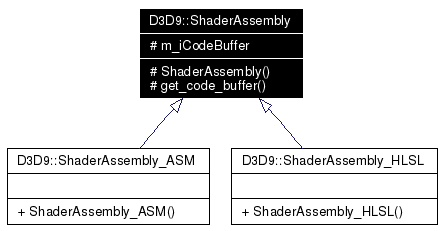

Inheritance diagram for D3D9::ShaderAssembly:

[legend]List of all members.

Protected Member Functions
	ShaderAssembly ()
	Protected constructor exist (and do nothing), but should NOT be called by user.
DWORD *	get_code_buffer ()
	Get buffer containing compiled bytecode of the shader assembly.
Protected Attributes
Core::COMRefPtr< ID3DXBuffer >	m_iCodeBuffer
	this pointer is protected to allow only sub-classes to initialize it

---

Detailed Description

This is base class for hierarchy of shader compilers.

Shader assembly can be viewed as intermediate representation of shader code. When created it immediately attempt to compile given shader, and once constructed - it can be fed to D3D9::VertexShader or D3D9::PixelShader constructors to actually load the shader onto video card.

Note:

Library users can't directly create instances of this class. They should create instances of descendant classes D3D9::ShaderAssembly_ASM or D3D9::ShaderAssembly_HLSL, instead.

---

Constructor & Destructor Documentation

D3D9::ShaderAssembly::ShaderAssembly (   )  [protected]

Protected constructor exist (and do nothing), but should NOT be called by user. Users should construct ShaderAssembly_ASM or ShaderAssembly_HLSL instead.

---

Member Function Documentation

DWORD* D3D9::ShaderAssembly::get_code_buffer (   )  [inline, protected]

Get buffer containing compiled bytecode of the shader assembly. Note: This buffer can then be used in native Direct3DDevice::Create***Shader() functions

---

Member Data Documentation

Core::COMRefPtr<ID3DXBuffer> D3D9::ShaderAssembly::m_iCodeBuffer [protected]

this pointer is protected to allow only sub-classes to initialize it

---

The documentation for this class was generated from the following files:

• dx9_wrap.h
• dx9_wrap.cpp

---
