D3D9::FixedVertexShader Class Reference

Special "Fixed function" vertex shader. More...

#include <dx9_wrap_fixed.h>

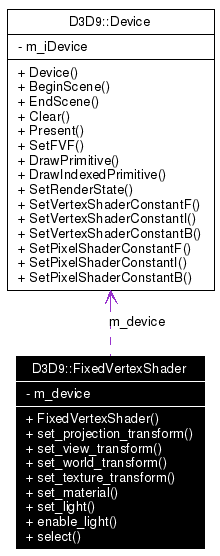

Collaboration diagram for D3D9::FixedVertexShader:

[legend]List of all members.

Public Member Functions
	FixedVertexShader (Device &n_device)
	Construct instance of fixed function shader through which you will be able to change fixed-function vertex pipeline settings on the device.
void	set_projection_transform (const math::matrix4 &matrix)
	Set "PROJECTION" transformation matrix used in legacy "fixed function vertex pipeline".
void	set_view_transform (const math::matrix4 &matrix)
	Set "VIEW" transformation matrix used in legacy "fixed function vertex pipeline".
void	set_world_transform (const math::matrix4 &matrix)
	Set "WORLD" transformation matrix used in legacy "fixed function vertex pipeline".
void	set_texture_transform (int stage, const math::matrix4 &matrix)
	Set texture coordinates transform matrix used in legacy "fixed function vertex pipeline".
void	set_material (const Material &material)
	Set material properties for fixed function vertex lighting calculations.
void	set_light (int light_index, const Light &light)
	Set specified light properties for fixed function vertex lighting calculations.
void	enable_light (int light_index, bool enable)
	Enable/disable specified fixed function vertex light source.
void	select ()
	Select this vertex shader as active vertex shader on attached render device.

---

Detailed Description

Special "Fixed function" vertex shader.

Via this interface you set up fixed function vertex pipeline, things such as:

• Set current "Material" properties.
• Attributes of "fixed function per-vertex lights", such as positions, directions, colors, attenuation factors, etc..
• World, View, and Projection transformation matrices used in fixed function vertex pipeline.

  Note:

  Single instance of this class is always bundled with any Device object.
  It can be accessed via public member variable "fixed_vertex" of Device objects.

---

Constructor & Destructor Documentation

D3D9::FixedVertexShader::FixedVertexShader (  Device &  n_device  )

Construct instance of fixed function shader through which you will be able to change fixed-function vertex pipeline settings on the device.

---

Member Function Documentation

void D3D9::FixedVertexShader::set_projection_transform (  const math::matrix4 &  matrix  )

Set "PROJECTION" transformation matrix used in legacy "fixed function vertex pipeline".

void D3D9::FixedVertexShader::set_view_transform (  const math::matrix4 &  matrix  )

Set "VIEW" transformation matrix used in legacy "fixed function vertex pipeline".

void D3D9::FixedVertexShader::set_world_transform (  const math::matrix4 &  matrix  )

Set "WORLD" transformation matrix used in legacy "fixed function vertex pipeline".

void D3D9::FixedVertexShader::set_texture_transform (  int  stage, const math::matrix4 &  matrix )

Set texture coordinates transform matrix used in legacy "fixed function vertex pipeline".

void D3D9::FixedVertexShader::set_material (  const Material &  material  )

Set material properties for fixed function vertex lighting calculations.

void D3D9::FixedVertexShader::set_light (  int  light_index, const Light &  light )

Set specified light properties for fixed function vertex lighting calculations.

void D3D9::FixedVertexShader::enable_light (  int  light_index, bool  enable )

Enable/disable specified fixed function vertex light source.

void D3D9::FixedVertexShader::select (   )

Select this vertex shader as active vertex shader on attached render device. Calling this function selects fixed shader

---

The documentation for this class was generated from the following files:

• dx9_wrap_fixed.h
• dx9_wrap_fixed.cpp

---
